Aligned Multi-Walled Carbon Nanotubes
CAS Number 308068-56-6
Anode Materials, Battery Materials, Carbon Nanotubes (CNTs), Low Dimensional Materials
High Purity Aligned Multi-Walled CNTs
Improve mechanical and electrical properties of materials
Overview | Product Information | Related Products

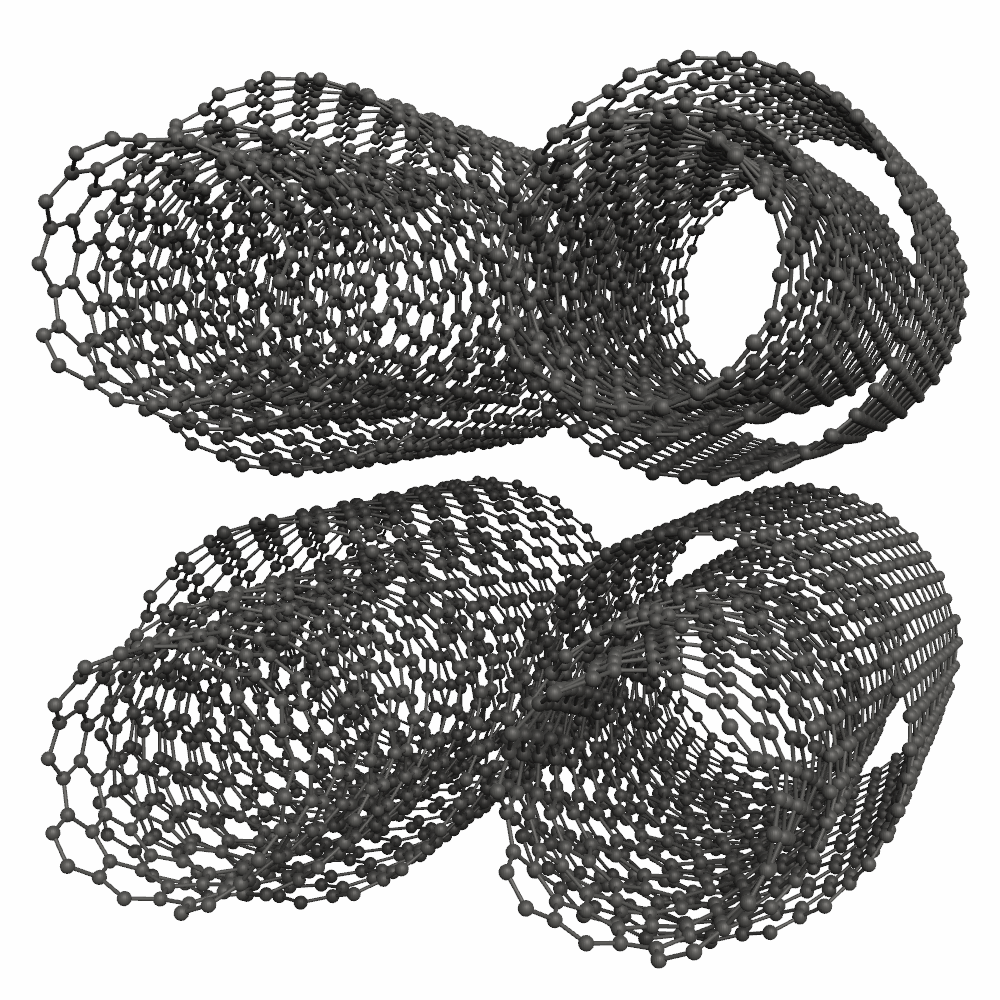

Aligned multi-walled carbon nanotubes (MWCNTs), CAS number 308068-56-6, are arrayed in the same direction parallel to the bundle axis. Similar to other carbon nanotubes, aligned MWCNTs are widely used as reinforcing material to achieve high stiffness in polymer composites. Polymer composites incorporated with align multi-walled carbon nanotubes surpass those with ordinary MWCNTs (effective modulus of 6.4 GPa) in stiffness, exhibiting an effective modulus of 13.2 GPa.
Aligned multi-walled carbon nanotubes also enhance the electrical properties of polymer composites. An epoxy composite containing 0.01 wt% aligned multi-walled carbon nanotubes as conductive filler demonstrates a bulk conductivity of 10-3 S/m, transitioning from being purely dielectric. Additionally, the electrical conductivity of the polymer composites exhibits anisotropy. When measured parallel to the alignment of carbon nanotubes, the conductivity is nearly three orders of magnitude higher than when measured perpendicular to it.
Bundle axis aligned MWCNTs
Improving mechanical and electrical properties
Surpassing ordinary MWCNTs in stiffness
Achieving an effective modulus of 13.2 Gpa
Worldwide shipping
Quick and reliable shipping
High purity
>96% High purity
General Information
| CAS Number | 308068-56-6 |
|---|---|
| Chemical Formula | CxHy |
| Full Name | Aligned multi-walled carbon nanotubes |
| Recommended Dispersants | DI Water, DMF, THF, Ethanol, Acetone |
| Synonyms | AMWCNT, A-MWCNT, Aligned multi walled carbon nanotubes |
| Classification or Family | 1D materials, Carbon nanomaterials, Nanomaterials, Polycyclic aromatic hydrocarbons, Thin film electronics, Polymer composites |
Aligned Multi-Walled Carbon Nanotubes
| Product Code | M2438L1 | M2438L2 |
|---|---|---|
| Purity | >96% | >96% |
| Outside Diameter | 8 – 18 nm | 8 – 18 nm |
| Inside Diameter | 6 nm | 5 – 10 nm |
| Length | 9 – 14 μm | 25 – 95 μm |
| Appearance | Black powder | Black powder |
| True Density | 2.2 g/cm3 | 2.2 g/cm3 |
| Specific Surface Area | 30 – 300 m2/g | 170 m2/g |
| Ash Content | 2 wt% | 2 wt% |
| Thermal Conductivity | 2100 W/m·K | N/A |
| Electrical Conductivity | N/A | 1300 S/cm |
| Manufacturing Method | Chemical vapour deposition | Chemical vapour deposition |
MSDS Documentation
Aligned Multi-Walled Carbon Nanotubes MSDS Sheet
Pricing
| Product Code | Product Details | Quantity | Price |
|---|---|---|---|
| M2438L1 | 9 – 14 μm length | 500 mg | £60 |
| M2438L1 | 9 – 14 μm length | 1 g | £95 |
| M2438L1 | 9 – 14 μm length | 2 g | £155 |
| M2438L1 | 9 – 14 μm length | 5 g | £310 |
| M2438L2 | 25 – 95 μm length | 500 mg | £60 |
| M2438L2 | 25 – 95 μm length | 1 g | £95 |
| M2438L2 | 25 – 95 μm length | 2 g | £155 |
| M2438L2 | 25 – 95 μm length | 5 g | £350 |
References
- Investigation into the toughening mechanism of epoxy reinforced with multi-wall carbon nanotubes, X. Li et al., e-Polymers, 15 (5), 335–343 (2015); DOI: 10.1515/epoly-2015-0143.
- Anisotropic electrical conductivity of polymer composites with aligned carbon nanotubes, S. Gong et al., Polymer, 56, 498–506 (2015); DOI: 10.1016/j.polymer.2014.11.038.
- Formation of percolating networks in multi-wall carbon-nanotube–epoxy composites, C. Martin et al., Compos. Sci. Technol., 64, 2309–2316 (2004); DOI: 10.1016/j.compscitech.2004.01.025.
