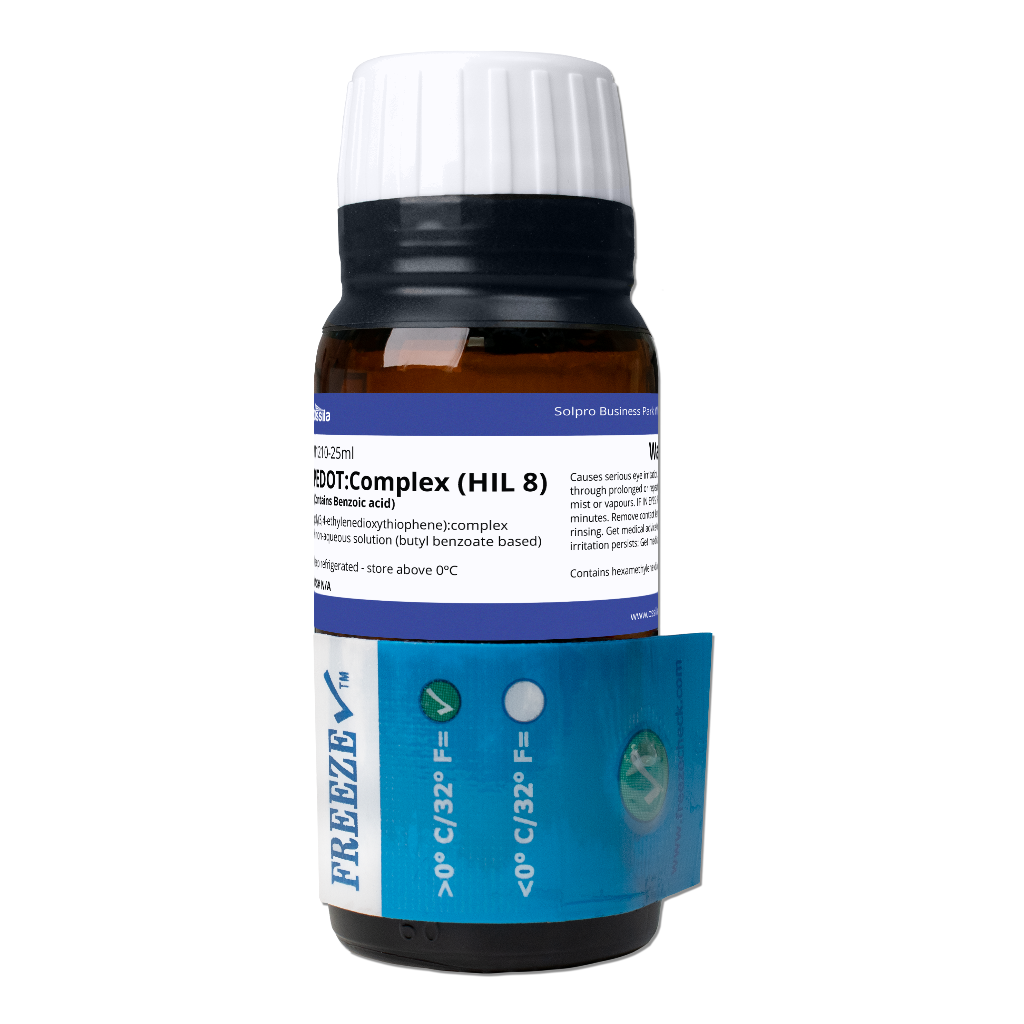

HIL 8 PEDOT Complex
Materials, Organic Conductors, PEDOT:PSS and PEDOT Polymer Blends
Non-Aqueous Butyl Benzoate Based Blue PEDOT:Complex Dispersion
Used for applications in HIL, printed OLED/QLED, and displays
Specifications | MSDS | Resources and Support
HIL 8 PEDOT Complex is a pH neutral non-aqueous butyl benzoate based blue PEDOT complex dispersion, with an alternative counter ionomer of PSEBS. HIL 8 PEDOT Complex is designed as hole injection layer material (HTL) for OLEDs, OPVs, and perovskite solar cells.
Deep Work Function
Matching interfacial energy levels
Versatile use
Ideal for applications in HIL, printed OLED/QLED, and displays
High Quality
Quality formulation
Tailored Low Conductivity
Low conductivity
Technical Data
| Product Name | Clevios™ HIL 8 |
|---|---|
| Solvent | Butyl benzoate |
| Composition | PEDOT complex |
| Solid Content | 3.0 – 4.0 wt.% |
| Work Function | 5.0 – 5.1 eV |
| Resistivity | 100 – 10000 Ω/cm |
| Sheet Resistance | +10E6 Ω/sq |
| Conductivity | Low conductivity |
| Particle Size Distribution | N/A |
| Viscosity | 5 – 9 mPa.s |
| pH Value | pH neutral |
| Packaging | 25 ml of solution sealed in a light resistant bottle with temperature indicator |
| Storage | 3 – 5 °C |
Spin Speed Data
HIL 8 Spin Speed / Film Thickness
MSDS Document
HIL 8 PEDOT Complex MSDS Sheet
Resources and Support
How to Spin Coat PEDOT Materials
For the deposition of thin films of PEDOT materials on a freshly prepared surface, we recommend using a vacuum-free spin coater and following this five-step process:
Read more...
PEDOT and PEDOT:PSS Synthesis
PEDOT synthesis involves the oxidative chemical or electrochemical polymerization of EDOT monomer. The choice of counterions and polymerization method significantly affects the conductivity, work function, and stability of the resulting PEDOT polymer.
Read more...
