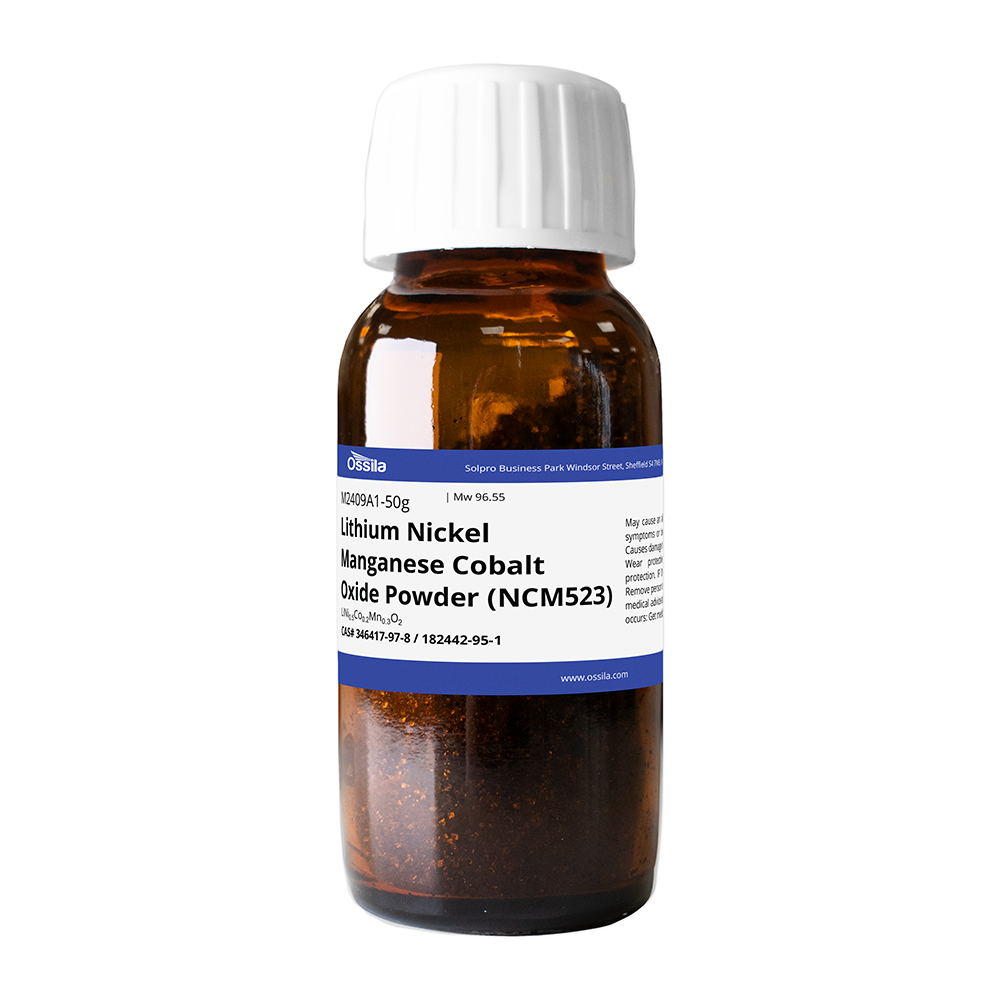

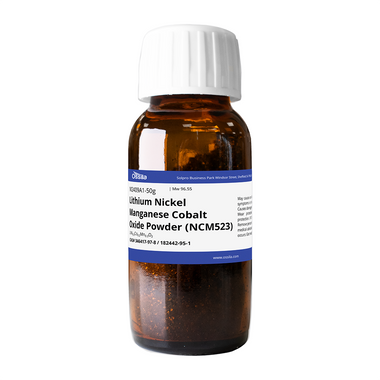

Lithium Nickel Manganese Cobalt Oxide Powder (NCM523)

CAS Number 346417-97-8 / 182442-95-1

MSDS

Lithium Nickel Manganese Cobalt Oxide Powder (NCM523) CAS 346417-97-8 / 182442-95-1

NCM523 - Lithium Nickel Manganese Cobalt Oxide, Cathode Materials

Powder for high power Li-ion battery cathode application, (Ni : Co : Mn = 5 : 2 : 3)

Technical Data | MSDS | Literature and Reviews | Related Products

Layered ternary oxide lithium nickel manganese cobalt oxide, LiNi_0.5Co_0.2Mn_0.3O₂ (NCM523, or NMC532), has displayed great advantages in its relatively high energy density, low cost, low toxicity, cycle stability and safety as battery materials for electric vehicles. NCM523 is one of the most important cathode materials for next-generation lithium (Li) ion batteries due to its high capacity and cost effectiveness compared with LiCoO₂. It has been reported to have a reversible capacity of 160 mAh g^-1 at 4.3 V (vs. Li/Li⁺) and 190 mAh g^-1 at 4.5 V (vs. Li/Li⁺). Compared with LiCoO₂ cathode material, less use of Co reduces the cost; Ni contributes to a higher capacity at the expense of complicated preparation and Mn enhances the structural stability during charging/discharging.

High energy density

Most important cathode materials for next-generation lithium

low cost

Cost Effective Value

High safety

Safety tests superior to a pure NCM cell.

Worldwide shipping

Quick and reliable shipping

With low contents of cheap materials graphene (0.5 wt%) and Al₂O₃ (1.0 wt %) as additives, the cyclic stability, energy density and thermal safety of the lithium ion battery (LIBs) can be dramatically improved. The assembled cell of NCM523-Al₂O₃-Gs∥graphite delivered an impressive capacity retention of 76.9% at 3.0 C after 400 cycles. The heat generation during the discharging under 3.0 C and safety tests are also both superior to those of a pure NCM cell.

Technical Data

CAS Number	346417-97-8 / 182442-95-1
Chemical Formula	LiNi_0.5Co_0.2Mn_0.3O₂
Molecular Weight	96.55 g/mol
Chemical Name	Lithium Nickel Manganese Cobalt Oxide
Synonyms	NCM523, NMC532
Classification / Family	2D semiconducting materials, Battery materials, Metal oxides, Cathode materials
Colour	Black to grey powder

Product Details

Product Code	M2409A1	M2409A2
Tap Density	2.50 g/cm³	2.50 g/cm³
BET	0.33 m²/g	0.24 m²/g
Particle Size	~ 10 µm (D50)	11.4 µm (D50)
pH	11.2	11.4
Discharge Efficiency (First)	87%	84.5%
Capacity (First)	154 mAh/g	164 mAh/g

*For larger orders please email us to discuss prices

MSDS Documents

NCM523 - Lithium Nickel Manganese Cobalt Oxide (LiNi_0.5Co_0.2Mn_0.3O₂) Powder MSDS Sheet

Literatures

Understanding the Outstanding High-Voltage Performance of NCM523||Graphite Lithium Ion Cells after Elimination of Ethylene Carbonate Solvent from Conventional Electrolyte, S. Klein et al., Adv. Energy Mater., 11, 2003738 (2021); DOI: 10.1002/aenm.202003738.
On the Beneficial Impact of Li2CO3 as Electrolyte Additive in NCM523 ∥ Graphite Lithium Ion Cells Under High-Voltage Conditions, S. Klein et al., Adv. Energy Mater., 11, 2003756 (2021); DOI: 10.1002/aenm.202003756,
Stable Electrode/Electrolyte Interface for High-Voltage NCM 523 Cathode Constructed by Synergistic Positive and Passive Approaches, X. Shi et al., ACS Appl. Mater. Interfaces, 13 (48), 57107–57117 (2021); DOI: 10.1021/acsami.1c15690.

Pathways toward Improved Performance of NCM523 Pouch Cell via Incorporating Low-Cost Al2O3 and Graphene, Y. Huang et al., ACS Appl. Energy Mater., 3 (11), 10920–10930 (2020); DOI: 10.1021/acsaem.0c01912.
Dual Role of Bis(borate) Additive in Electrode/Electrolyte Interface Layer Construction for High-Voltage NCM 523 Cathode, Y. Ciao et al., ACS Appl. Energy Mater., 6 (9), 4817–4824 (2023); DOI: 10.1021/acsaem.3c00250.
High potential performance of Cerium-doped LiNi0.5Co0.2Mn0.3O2 cathode material for Li-ion battery, L. Xia et al., J. Mater. Sci., 50, 2914–2920 (2015); DOI: 10.1007/s10853-015-8856-9.
Lithium-conductive LiNbO3 coated high-voltage LiNi0.5Co0.2Mn0.3O2 cathode with enhanced rate and cyclability, H. Yu et al., Green Energy Environ., 7 (2), 266-274 (2022); DOI: 10.1016/j.gee.2020.09.011.
Strategic Approach to Diversify Design Options for Li-Ion Batteries by Utilizing Low-Ni Layered Cathode Materials, M. Jeong et al., Adv, Energy Mater., 12 (7), 2103052 (2022); DOI: 10.1002/aenm.202103052.
Structural and Chemical Compatibilities of Li1−xNi0.5Co0.2Mn0.3O2 Cathode Material with Garnet-Type Solid Electrolyte for All-Solid-State Batteries, S. Hong et al., Small, 17 (46), 2103306 (2021); DOI: 10.1002/smll.202103306.
Understanding the Degradation Mechanisms of LiNi0.5Co0.2Mn0.3O2 Cathode Material in Lithium Ion Batteries, S. Jung et al., Adv, Energy Mater., 4 (1), 1300787 (2014); DOI: 10.1002/aenm.201300787.
