Gate Deposition Mask for Interdigitated ITO OFETs

Order Code: E271

Price

(excluding Taxes)

£199.00

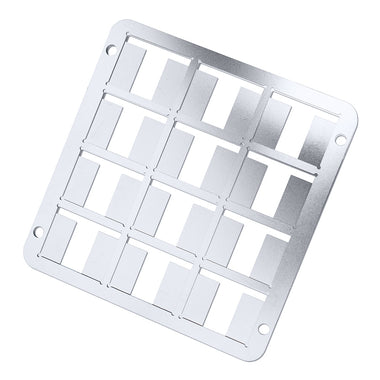

An evaporation mask for deposition of gate contacts onto Ossila's pre-patterned ITO substrates (S161). The T-shaped aperture allows the gate to cover the interdigitated source-drain contacts while also providing easy electrical connection via the Ossila USB test board.

Update: As part of our program of product improvement we have decided to simplify the masks available. Each type of mask is now available as a two sided mask. On one side a spacer and substrate holder are welded to the mask and on the other just a substrate holder. This will allow our customers to both options available to test out if they are uncertain which is best suited for their work. It also means you only need to purchase a single mask rather than two if you would like to use both systems.

Please note that the single sided masks will only remain available while stocks last. However, if you are concerned that the double sided masks will be too thick for your evaporator then please do get in touch as we will be happy to help with this.



Datasheet

Size 75 mm x 75 mm
Thickness 1.9 mm (excluding bolts)
Material Stainless steel
Capacity 12 substrates (S101)
Spacer Optional 200 μm substrate separation spacer on one
OFET evaporation stack for top gate ITO substrates (exploded diagram)







Lid





Substrate holder and 200 μm standoff





Gate shadow mask









To the best of our knowledge the technical information provided here is accurate. However, Ossila assume no liability for the accuracy of this information. The values provided here are typical at the time of manufacture and may vary over time and from batch to batch.
