Hex-Ir(phq)3


Product Code M2312A1
Price £199.00 ex. VAT

Hex-Ir(phq)3, tris[2-(4-n-hexylphenyl)quinoline)]iridium(III), has three phenylquinoline ligands chelated to the iridium centre. Different to Ir(phq)3,The hexyl chain attached to the benzene ring makes Hex-Ir(phq)3 highly soluble in common organic solvents for easy device fabrication and large-area solution processing, i.e. spin-coating or inkjet printing.

Hex-Ir(phq)3 is a phosphorescent orange to red emitting and slight red-shifted in emission while compared to Ir(phq)3.

General Information

CAS number 1268460-37-2
Chemical formula C63H66IrN3
Molecular weight 1057.43 g/mol
Absorption λmax 323 nm (dichloromethane)
Photoluminescence λem 583 nm (dichloromethane)
HOMO/LUMO HOMO = 4.9 eV, LUMO = 2.8 eV [1]
Chemical name Tris[2-(4-n-hexylphenyl)quinoline)]iridium(III)
Synonyms Hex-Ir(phq)3
Classification / Family Iridium complex, Orange to red phosphorescent materials, Blue dopant materials, Electron transport materials, Sublimed materials, Semiconducting small molecules

Product Details

Purity Sublimed >99.0% (HPLC)
Melting point > 260 °C (0.5% weight loss)
Appearance Red powder/crystals

*Sublimation is a technique used to obtain ultra pure-grade chemicals. For more details about sublimation, please refer to the sublimed materials for OLED devices page.

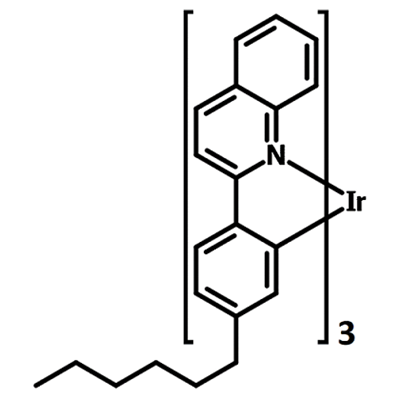

Chemical Structure

hex-ir(phq)3 chemical structure, CAS# 1268460-37-2

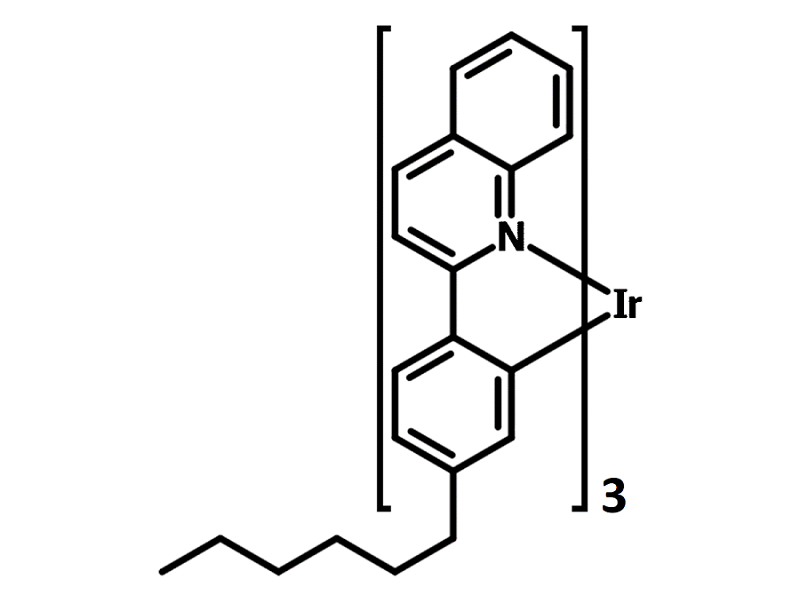

Chemical structure of Tris[2-(4-n-hexylphenyl)quinoline)]iridium(III) (Hex-Ir(phq)3)

Device Structure(s)

Device structure ITO/PEDOT:PSS/TFB/PVK:PBD:TPD:Hex-Ir(phq)(57:24:9:10)/TPBI/Al [1]
Colour Red red
Max. Luminance 17,910 cd/m2
Current Efficiency @100 cd/m2 14.5 cd/A
Power Efficiency @100 cd/m2 7.7 Im/W



Device structure ITO/PEDOT:PSS/TFB/PVK:PBD:TPD:Hex-Ir(phq)(53:24:9:14)/TPBI/Al [1]
Colour Red red
Max. Luminance 12,950 cd/m2
Current Efficiency @100 cd/m2 14.9 cd/A
Power Efficiency @100 cd/m2 9.9 Im/W



Device structure ITO (130 nm)/PEDOT:PSS (30 nm)/TFB (20 nm)/ICTRZ-1:12wt% Hex-Ir(phq)3 (70 nm)/ZnO NPs (10 nm)/PEIE (20 nm)/PMA (10 nm)/TFB (20 nm)/ICTRZ-1:12wt% Hex-Ir(phq)3 (70 nm)/ZnO NPs (10 nm)/PEIE (20 nm)/Al (100 nm) [2]
Colour Red red
Max. EQE 22.8%

Pricing


Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2312A1 100 mg £199.00
Sublimed (>99.0% purity) M2312A1 250 mg £398.00
Sublimed (>99.0% purity) M2312A1 500 mg £699.00
Sublimed (>99.0% purity) M2312A1 1 g £1200.00


MSDS Documentation

Hex-Ir(phq)3 MSDS sheet



Literature and Reviews

  1. Highly efficient solution-processed red organic light-emitting diodes with long-side-chained triplet emitter, Y-C. Chao et al., Synth. Met., 161, 148-152 (2011); DOI:10.1016/j.synthmet.2010.11.013.
  2. An Indolocarbazole-Based Thermally Activated Delayed Fluorescence Host for Solution-Processed Phosphorescent Tandem Organic Light-Emitting Devices Exhibiting Extremely Small Efficiency Roll-Off, S. Ohisa et al., Adv. Funct. Mater., 29 (16); 1808022 (2019); DOI: 10.1002/adfm.201808022.
  3. Solution processed multilayer red, green and blue phosphorescent organic light emitting diodes using carbazole dendrimer as a host, a. Hasan et al., J. Luminescence, 183, 150-158 (2017); DOI: 10.1016/j.jlumin.2016.11.054.
  4. ZnO/Polyethyleneimine Ethoxylated/Lithium Bis(trifluoromethanesulfonyl)imide for Solution-Processed Electron Injection Layers in Organic Light-Emitting Devices, Y. Chikayasu et al., J. Photopolym. Sci. Technol., 32 (4); 577-583 (2019); DOI: 10.2494/photopolymer.32.577..

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
