DPP-EH-2ThBr


Product Code B471
Price £190.00 ex. VAT

3,6-bis(5-bromothiophen-2-yl)-2,5-bis(2-ethylhexyl)pyrrolo[3,4-c]pyrrole-1,4(2H,5H)-dione (DPP-EH-2ThBr) is a building block containing a DPP backbone as a strong acceptor unit. It has a planar conjugated bi-cyclic structure engaging stronger π–π interactions. Due to its electron-deficient nature, DPP-EH-2ThBr and its derivatives are used for the synthesis of small molecules and low band-gap polymer semiconductors with OPV, OLED and perovskite solar cells.

General Information

CAS number 1000623-95-9
Chemical formula C30H38Br2N2O2S
Molecular weight 682.57 g/mol
Synonyms 3,6-bis(5-bromothiophen-2-yl)-2,5-bis(2-ethylhexyl)pyrrolo[3,4-c]pyrrole-1,4(2H,5H)-dione
Classification / Family Pyrroles, Pyrrolopyrrole-dione (DPP), Thiophenes, Acceptor, Organic semiconducting materials, Semiconductor synthesis, Building blocks

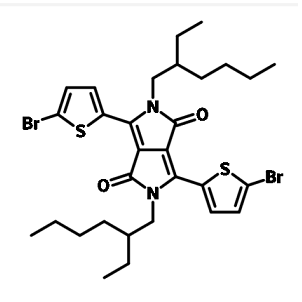

Chemical Structure

dpp-EH-2TBr, dpp-c8, 1000623-95-9

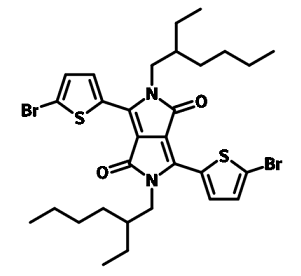

Chemical structure of DPP-EH-2ThBr

Product Details

Purity >98%
Melting point No data available
Appearance Dark red/purple solid

MSDS Documentation

DPP-EH-2ThBr MSDSDPP-EH-2ThBr MSDS Sheet

Literature and Reviews

  1. Synthesis, thin-film morphology, and comparative study of bulk and bilayer heterojunction organic photovoltaic devices using soluble diketopyrrolopyrrole molecules, W. Kylberg et al., Energy Environ. Sci., 4, 3617-3624 (2011); DOI: 10.1039/C1EE01544C.
  2. Solution processable low bandgap diketopyrrolopyrrole (DPP) based derivatives: novel acceptors for organic solar cells, P. Sonar et al, J. Mater. Chem., 20, 3626-3636 (2010); DOI: 10.1039/B924404B.
  3. Isomers of dialkyl diketo-pyrrolo-pyrrole: Electron-deficient units for organic semiconductors, B. Zhao et al., Org. Electronics, 13 (11), 2516-2524 (2012); https://doi.org/10.1016/j.orgel.2012.07.015.

To the best of our knowledge the information provided here is accurate. However, Ossila assume no liability for the accuracy of this page. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. All products are for laboratory and research and development use only, and may not be used for any other purpose including health care, pharmaceuticals, cosmetics, food or commercial applications.
