Product Code M2118A1-250mg
Price £240 ex. VAT

ACRSA, efficient TADF material

Blue-greenish emitter available online for priority dispatch


10-phenyl-10H,10′H-spiro[acridine-9,9′-anthracen]-10′-one (ACRSA) is one of the few spiro compounds known to exhibit efficient thermally activated delayed fluorescence (TADF). Its bichromophoric structure consists of a weakly-coupled acridine moiety as an electron-donating unit and an anthracenone moiety as an electro-accepting group. These are covalently linked by a spiro-junction in such a way that the respective π systems are orthogonal.

ACRSA is also known as an aromatic ketone-derived blue-greenish emitter with a relatively small ΔEST of 0.03 eV.

General Information


CAS number 1206626-95-0
Chemical formula C32H21NO
Molecular weight 435.52 g/mol
Absorption* λmax 430 nm
Fluorescence λem 490 nm
HOMO/LUMO ΔEST = 0.03 eV (ES1 = 2.55 eV, ET1 = 2.52 eV) [1]
Synonyms 10-phenyl-10H,10′H-spiro[acridine-9,9′-anthracen]-10′-one
Classification / Family Acridine derivatives, Greenish blue emitter, Light-emitting diodes, Organic electronics, TADF materials, Sublimed materials.

* Measurable with an optical spectrometer, see our spectrometer application notes.

Product Details


Purity Sublimed >99.0% (HPLC)
Melting point TGA: >250 °C (0.5% weight loss)
Appearance Off-white crystals/powder

* Sublimation is a technique used to obtain ultra pure-grade chemicals, see sublimed materials.

Chemical Structure


acrsa chemical structure

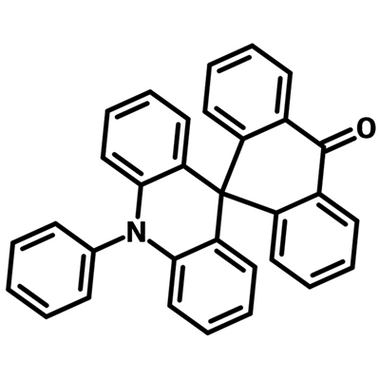

Chemical structure of ACRSA

Device Structure(s)


Device structure ITO/a-NPD (40 nm)/mCP (10 nm)/20 wt% ACRSA:DPEPO (15 nm)/DPEPO (3.5 nm)/TPBi (41.5 nm)/LiF (0.8 nm)/Al (80 nm) [1]
Colour Bluish-Green bluish-green light emitting device
Max EQE 16.4%
Max. Photo-luminescence 81%
Device structure ITO/a-NPB (35 nm)/mCP (10 nm)/1 wt%-TBPe: 15wt%-ACRSA: DPEPO (15 nm)/DPEPO (8 nm)/TPBi (57 nm)/LiF (0.8 nm)/Al (100 nm) [2]
Colour Blue blue light emitting device
Max Current Efficiency 27 cd/A
Max EQE 13.4%
Max. Power Efficiency 18 lm W-1

*For chemical structure information, please refer to the cited references.

Pricing


Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2118A1 250 mg £240
Sublimed (>99.0% purity) M2118A1 500 mg £400
Sublimed (>99.0% purity) M2118A1 1 g £680

MSDS Documentation


ACRSA MSDSACRSA MSDS sheet

Literature and Reviews


  1. A highly luminescent spiro-anthracenone-based organic light-emitting diode exhibiting thermally activated delayed fluorescence, K. Nasu et al., Chem. Comm. 49, 10385 (2013); DIO: 10.1039/C3CC44179B.
  2. High-efficiency organic light-emitting diodes with fluorescent emitters, H. Nakanotani et al., Nat. Commun., 5:4016 (2014); DOI: 10.1038/ncomms5016.
  3. Climbing up the Ladder: Intermediate Triplet States Promote the Reverse Intersystem Crossing in the Efficient TADF Emitter ACRSA, I. Lyskov et al., J. Phys. Chem. C, 121, 21145−21153 (2017); DOI: 10.1021/acs.jpcc.7b06187.
