AC-CNP, TADF yellow to orange dopant material

Available in sublimed grade for highly efficient TADF-OLED devices


Ac-CNP, 5,6-Bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile is a TADF yellow to orange emitter with a simple structure of a low-rigid two cyano groups attached electron-accepting pyrazine unit and two electron-donating phenyl acridine units. The two phenyl units act as bridges to the donor acridines and acceptor pyrazine-2,3-dicarbonitrile to form a bipolar A-π-D electronic structure.

Ac-CNP has high photoluminescence quantum yield (PLQY) of 67% and Ac-CNP based devices with mCP as the TADF host showed a high external quantum efficiency (EQE) of 13.3%.

General Information

CAS Number 1883400-34-7
Chemical Formula C48H36N4
Molecular Weight 696.84 g/mol
Absorption λmax 282 nm, 436 nm in toluene
Fluorescence λmax 620 nm in toluene
HOMO/LUMO HOMO = 5.40 eV, LUMO = 3.10 eV [1]
Full Name 5,6-Bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile
Synonyms 5,6-Bis[4-(9,9-dimethyl-9,10-dihydroacridine)pheny]-2,3-dicyano-pyrazine
Classification / Family Acridine derivatives, Pyrazines, TADF yellow to orange dopant, Sublimed small molecules

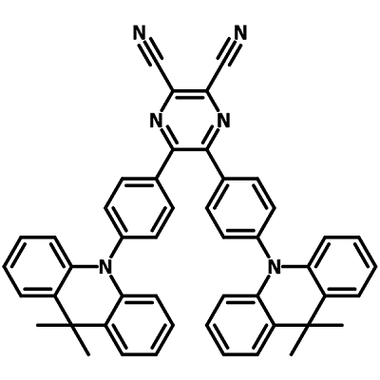

Chemical Structure

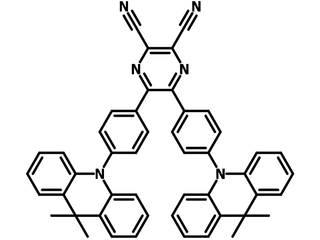

ac-cnp, 1883400-34-7 chemical structure, 5,6-Bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile
Chemical Structure of 5,6-Bis(4-(9,9-dimethylacridin-10(9H)-yl)phenyl)pyrazine-2,3-dicarbonitrile (Ac-CNP), CAS 1883400-34-7

Product Details

Purity Sublimed* >98.0% (HPLC)
Melting Point N/A
Appearance Orange powder/crystals

*Sublimation is a technique used to obtain ultra-pure grade chemicals. For more details about sublimation, please refer to the Sublimed Materials.

Device Structure

Device Structure ITO (110 nm)/NPD (40 nm)/mCP (10 nm)/Ac-CNP:mCP (6wt%, 20 nm)/PPF (10 nm)/TPBi (30 nm)/LiF (0.8 nm)/Al (100 nm) [1]
Colour orange light emitting device  Orange Red CIE (0.47, 0.51)
Max. EQE 13.3%
Max. Current Efficiency 38.1 cd/A
Max. Power Efficiency 26.1 Im/W

MSDS Documentation

Ac-CNP MSDSAc-CNP MSDS sheet

Pricing

Grade Order Code Quantity Price
Sublimed (>99.0% purity) M2389A1 100 mg £380
Sublimed (>99.0% purity) M2389A1 250 mg £760
Sublimed (>99.0% purity) M2389A1 500 mg £1300
Sublimed (>99.0% purity) M2389A1 1 g £2200

Literature and Reviews

  1. Full-Color Delayed Fluorescence Materials Based on Wedge-Shaped Phthalonitriles and Dicyanopyrazines: Systematic Design, Tunable Photophysical Properties, and OLED Performance, I. Park et al., Adv. Funct. Mater., 26, 1813−1821 (2016); 10.1002/adfm.201505106.
  2. Recent Progress of Highly Efficient Red and Near-Infrared Thermally Activated Delayed Fluorescent Emitters, J. Kim et al., Adv. Opt. Mater., 6 (18), 1800255 (2018); DOI: 10.1002/adom.201800255.
  3. Molecular Design Strategy for Orange Red Thermally Activated Delayed Fluorescence Emitters in Organic Light-Emitting Diodes (OLEDs), K. Naveen et al., Chem. Eur. J., 28 (12), e202103532 (2022); DOI: 10.1002/chem.202103532.
  4. Molecular Design Strategy of Organic Thermally Activated Delayed Fluorescence Emitters, Y. Im et al., Chem. Mater., 29 (5), 1946–1963 (2017); DOI: 10.1021/acs.chemmater.6b05324.

To the best of our knowledge the information provided here is accurate. The values provided are typical at the time of manufacture and may vary over time and from batch to batch. Products may have minor cosmetic differences (e.g. to the branding) compared to the photos on our website. All products are for laboratory and research and development use only.
