2,6-Bis(trimethytin)-4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)benzo[1,2-b:4,5-b’]dithiophene

Order Code: B351
MSDS sheet

Price

(excluding Taxes)

£159.90


Note: This monomer has been used in our own lab for the synthesis of PCE10 and PBDB-T (PCE12).

General Information

CAS number 1352642-37-5
Chemical formula C40H58S4Sn2
Molecular weight 904.57 g/mol
Synonyms
  • BDT
  • BDTT
Classification / Family Thiophene, Fused thiophene, Benzo-dithiophene heterocylic aromatics, Five-membered ring, Semiconductor synthesis intermediates, Low band gap polymers, OFETs, Organic photovoltaics, Polymer solar cells



Product Details

Purity >99% (by HPLC 254 nm)
Melting point n/a
Color White crystals



Chemical Structure

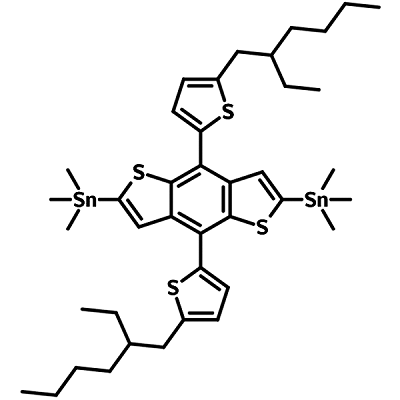

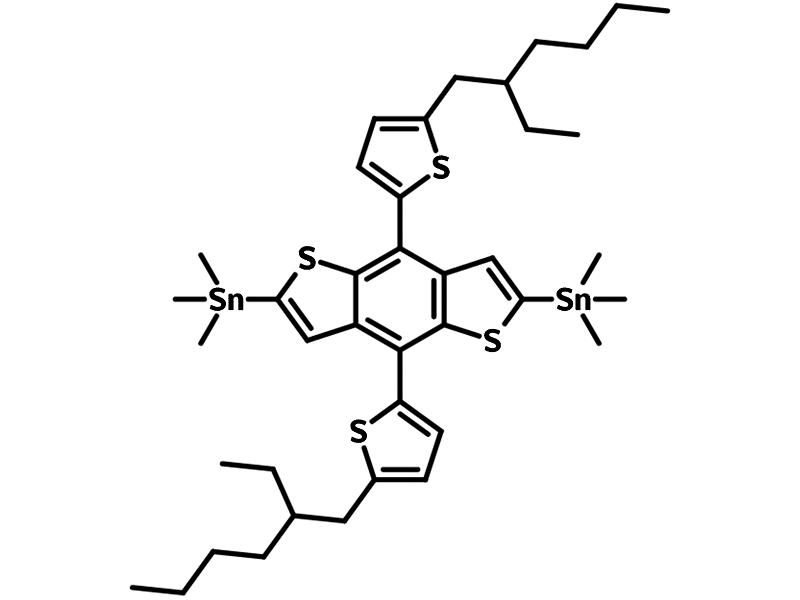

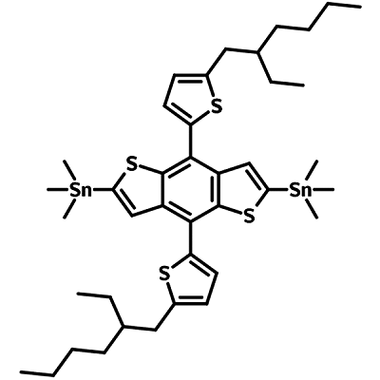

chemical structure of 2,6-Bis[5-(2-ethylhexyl)thiophen-2-yl]-4,8-bis(trimethylstannyl)benzo[1,2-b:4,5-b']dithiophene
Chemical structure of 2,6-bis(trimethytin)-4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)benzo[1,2-b:4,5-b’]dithiophene. CAS No.: 1352642-37-5. Chemical formula: C40H58S4Sn2.

Applications

2,6-Bis(trimethytin)-4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)benzo[1,2-b:4,5-b’]dithiophene has been used for the synthesis of small molecules and low band gap polymer semiconductors such as PTB-7, PCE10 (also called PTB7-Th or PBDTTT-EFT) and PBDB-T (PCE12) for OFETs, OLED, PLED, OPV applications.

Bearing two ethylhexyl alkyl side chains, with fused thiophenes and thiophenes as electron-rich pendants, 2,6-bis(trimethytin)-4,8-bis(5-(2-ethylhexyl)thiophen-2-yl)benzo[1,2-b:4,5-b’]dithiophene offers good solubility for synthesis of polymer chains.



Literature and Reviews

  1. Enhanced performance for organic bulk heterojunction solar cells by cooperative assembly of ter(ethylene oxide) pendants, L. Chen et al., Polym. Chem., 5, 4480-4487 (2014); DOI: 10.1039/C4PY00095A.
  2. Breaking the 10% Efficiency Barrier in Organic Photovoltaics: Morphology and Device Optimization of Well-Known PBDTTT Polymers, Adv. Energy Mater., 6, 1502529 (2016), S. Zhang et al., DOI: 10.1002/aenm.201502529.
  3. Study of Optical Properties and Molecular Aggregation of Conjugated Low Band Gap Copolymers: PTB7 and PTB7-Th, F. Bencheikh et al., J. Phys. Chem. C 2015, 119, 24643−24648 (2015); DOI: 10.1021/acs.jpcc.5b07803.
