Ultra-flat Quartz Coated Glass Substrates

Spectroscopy Equipment, Substrates and Fabrication

High-quality quartz coated glass substrates

Ultra-flat glass substrates available to purchase in three dimensions

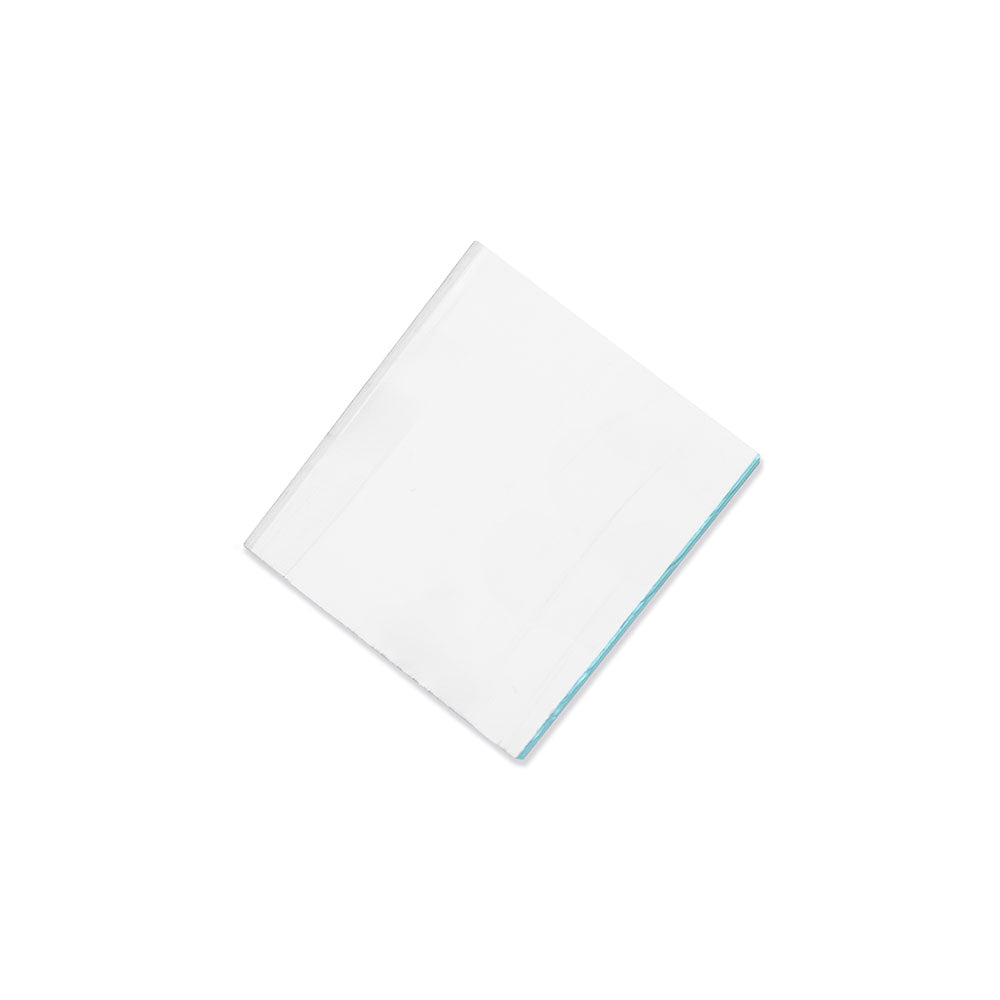

These ultra-flat glass substrates are coated with a 20 nm layer of synthetic quartz.

For many applications standard glass is simply not good enough due to either surface roughness or wettability. These synthetic quartz covered substrates are useful for a variety of activities such as absorption/PL measurements, OFET fabrication and surface profilometry where superior wettability and/or flatness are required.

The substrates come with small squares of ITO (Indium Tin Oxide) in the corners to help identify the SiO₂ coated side.

Specifications

Substrate Sizes	20 mm x 15 mm 25 mm x 25 mm 25 mm x 75 mm (Microscope Slide)
Thickness	1.1 mm
Glass Type	Polished soda lime, float glass
Substrate Coating	20 nm SiO₂
Refractive Index	1.5
Flatness	50 nm per 20 mm (typical)
Glass Roughness	1 nm RMS (by AFM)
