Insulator Deposition Mask, High Density


Product Code E3310-SPC
Price £200.00 ex. VAT

A mask for deposition of the insulator layer; for use with Ossila's high density OFET system.

Outer dimensions: 75 mm x 75 mm

Number of OFETs: 20 per substrate.

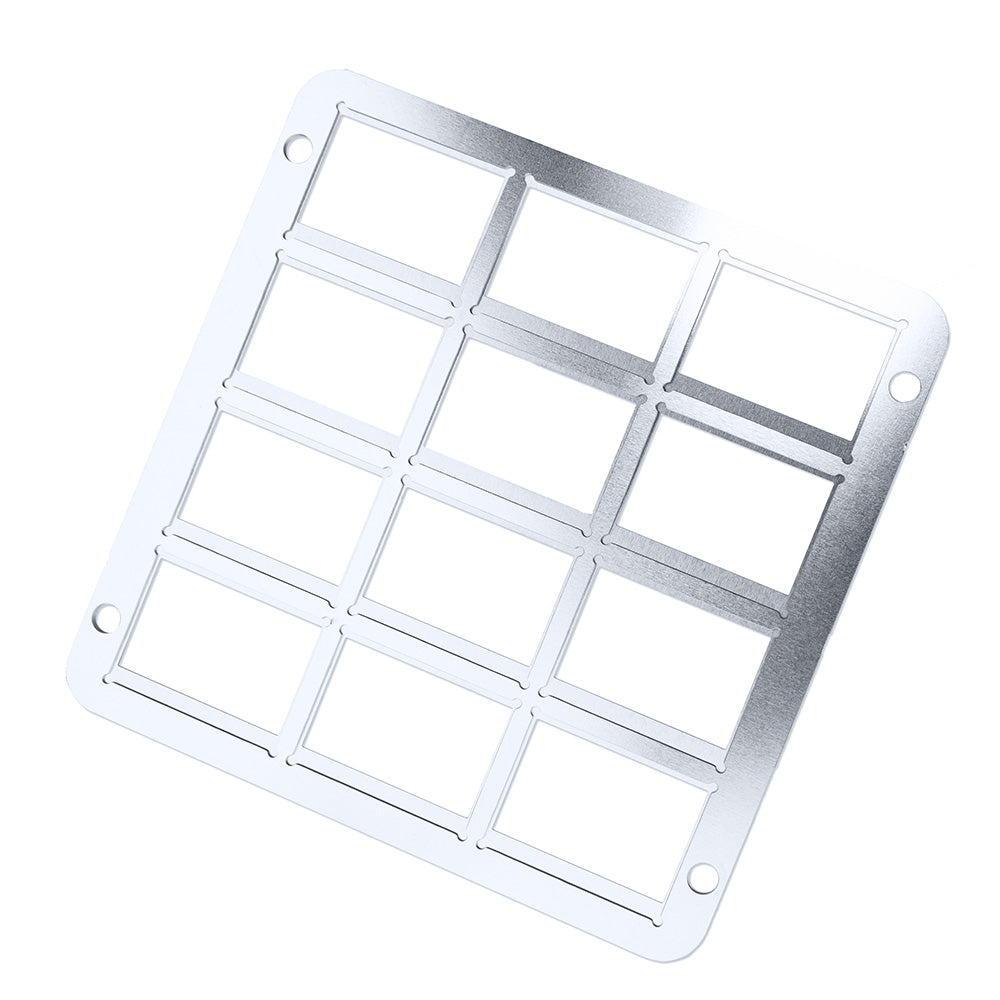

Mask with direct contact (no spacer): For sputtering and other non-directional deposition systems, as well as for thermal deposition systems with oblique angles or a very short throw, we recommend the use of the direct contact mask to get well-defined edges.

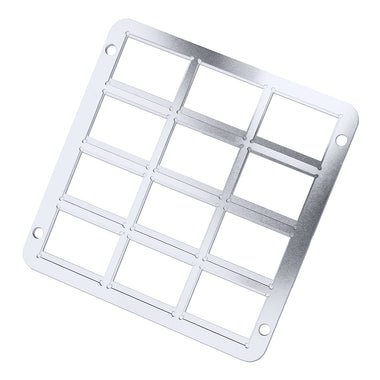

Mask with 200 μm spacer: For normal thermal evaporation systems we recommend the use of masks with the 200 μm spacer to help avoid scratches and allow better out-gassing.



Datasheet

High density twelve substrate evaporation stack (technical drawing)
Insulator Mask for High Density OFET system (technical drawing).



High density twelve substrate evaporation stack (dimensions)
Insulator Mask for High Density OFET system (substrate dimensions).
