3,3',6,6'-Tetrabromo-9,9'-bicarbazole

CAS Number 18628-03-0

Chemistry Building Blocks, Dibromo Monomers, Heterocyclic Building Blocks, Materials

3,3',6,6'-Tetrabromo-9,9'-bicarbazole MSDS

3,3',6,6'-Tetrabromo-9,9'-bicarbazole CAS 18628-03-0

Covalent Organic Framework (COF) Bicarbazole Ligand

A precursor for COFs in acetylene capture and separation, flame retardancy, energy storage, and hydrogen chloride sensors

Overview
Related Products

3,3',6,6'-Tetrabromo-9,9'-bicarbazole (TBBCz), CAS number 18628-03-0, is a bicarbazole that is joined at 9,9'-positions (N-N bonding) with four bromo function groups at 3,3',6,6'-positions. It can be considered as two 3,6-dibromocarbazole joined together to form a butterfly shaped structure with a nitrogen-nitrogen bonding.

MOF and COF Ligands

Precursor for cross-linked COF networks

Worldwide Shipping

Quick and reliable shipping

High Purity

>98% high purity material

Facile Reactions

Ideal for boronic esterification and Suzuki reactions

Highly stable MOF [Zn₆L₄(Me₂NH₂⁺)₄‧3H₂O], also known as FJU-83 with T-shaped functional capture sites, has been explored for acetylene capture and separation. FJU-83a demonstrated an excellent C₂H₂ uptake capacity of 122.9 cm³/g, plus good C₂H₂/CH₄ and C₂H₂/CO₂ selectivity of 24 and 2.9 respectively, under moderate temperature and normal atmosphere. Studies showed that the high selectivity over C₂H₂ to separate it from CH₄ or CO₂ was originated from the multiple C-H∙∙∙π and π∙∙∙π interactions. Car-CFT-5-500, another microporous bicarbazole-based COF, showed high specific surface area of 1,400 m²/g, a CO₂ uptake capacity of 7.60 mmol/g at 273 K, and a capacitance of 545 F/g at 5 mV/s.

General Information

CAS Number	18628-03-0
Chemical Formula	C₂₄H₁₂Br₄N₂
Full Name	3,3',6,6'-Tetrabromo-9,9'-bicarbazole
Molecular Weight	647.98 g/mol
Synonyms	TBBCz, BC-4Br, 3,6-Dibromo-9-(3,6-dibromocarbazol-9-yl)carbazole
Classification or Family	Bicarbazole, Heterocyclic building blocks, COF ligands

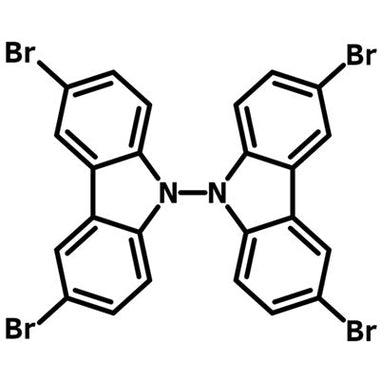

Chemical Structure

Product Details

Purity	> 98%
Melting Point	-
Appearance	White to off-white powder/crystals

MSDS Documentation

3,3',6,6'-Tetrabromo-9,9'-bicarbazole MSDS Sheet

Literature and Reviews

In Situ-Generated Heat-Resistant Hydrogen-Bonded Organic Framework for Remarkably Improving Both Flame Retardancy and Mechanical Properties of Epoxy Composites, Y. Zou et al., ACS Appl. Mater. Interfaces, 15 (40), 47463–47474 (2023); DOI: 10.1021/acsami.3c09197.
Bicarbazole-based redox-active covalent organic frameworks for ultrahigh-performance energy storage, Chem. Commun., 53, 11334-11337 (2015); DOI: 10.1039/C7CC07024A.
Ultrastable carbazole-tethered conjugated microporous polymers for high-performance energy storage, M. Ahmed et al., Microporous Mesoporous Mater., 333, 111766 (2022); DOI: 10.1016/j.micromeso.2022.111766.
A highly fluorescent covalent organic framework as a hydrogen chloride sensor: roles of Schiff base bonding and π-stacking, A. EL-Mahdy et al., J. Mater. Chem. C, 8, 9520-9528 (2020); DOI: 10.1039/D0TC01872D.
T-type capture site within highly stable bicarbazole-based metal–organic framework for C2H2 purification from CO2 and CH4, X. Xu et al., Sep. Purif. Technol., 325, 124654 (2023); DOI: 10.1016/j.seppur.2023.124654.
Porous organic/inorganic polymers based on double-decker silsesquioxane for high-performance energy storage, M. Mohamed et al., J. Polym. Res., 28, 219 (2021); DOI: 10.1007/s10965-021-02579-x.
Heteroporous bifluorenylidene-based covalent organic frameworks displaying exceptional dye adsorption behavior and high energy storage, A. EL-Mahdy et al., J. Mater. Chem. A, 8, 25148-25155 (2020); DOI: 10.1039/D0TA07281H.
Directly Synthesized Microporous Bicarbazole-Based Covalent Triazine Frameworks for High-Performance Energy Storage and Carbon Dioxide Uptake, M. Mohamed et al., ChemPlusChem, 84 (11), 1767-1774 (2019) DOI: 10.1002/cplu.201900635.
