Precision, Programmable Dip Coater for High Quality Films
Consistently produce and reproduce high quality films with ease
Overview | Specifications | Features | Gallery | Resources | Technical Support

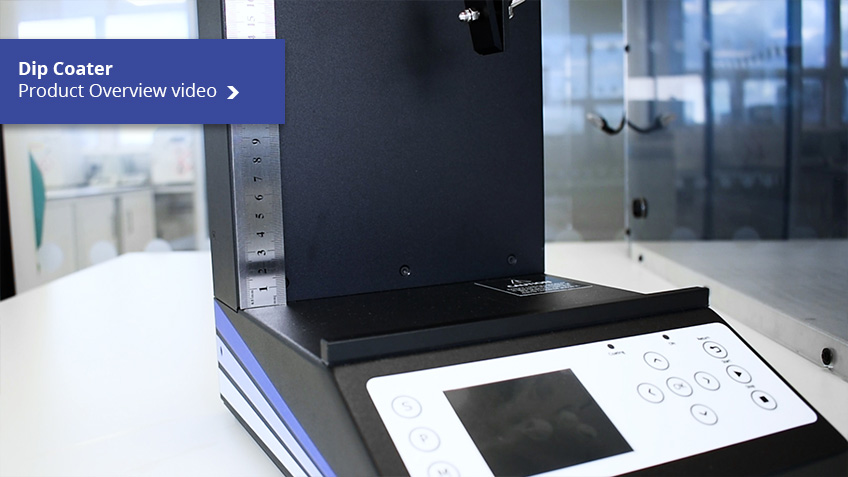

With high performance specifications and simple-to-use integrated software, the Ossila Dip Coater gives you the tools to coat high quality films at an affordable price. The high precision stage and motor help you consistently and easily achieve a range of coating thicknesses. Designed by experienced materials scientists, the Ossila Dip Coater improves your workflow with a quick-release clamp and magnetic ruler attachment.
The integrated software makes it easy to set up and allows you to choose between manual or automatic operation. Set the immersion and withdrawal properties independently to create both constant and variable film thicknesses. You can save 10 different programmes, each of which can store up to 20 routines, to coat multiple substrates without needing to reconfigure the device each time.
Wide Range of Speeds
From 0.05 to 125 mm.s-1
for different coating thicknesses
Smooth, Precise Motion
High performance motor
for accuracy and reproducibility
Variable Withdrawal Speed
Set immersion & withdrawal independently for gradient films
Manual or Automatic Control
Save your custom dip coating
parameters and cycles
Specifications
| Minimum Withdrawal Rate | 0.05 mm.s-1 |
|---|---|
| Maximum Withdrawal Rate | 125 mm.s-1 |
| Rate Reproducibility | ±0.01% @ 1 mm.s-1 ; ± 0.1% @ 10 mm.s-1 ; ± 0.3% @ >50 mm.s-1 |
| Maximum Travel Distance | 175 mm (6.89") |
| Maximum Number of Cycles | 1,000 cycles |
| Maximum Timer Duration (HH:MM:SS) | 99:59:59 |
| Integrated Software Features | Variable withdrawal speed, repeat cycles, crash detection |
| Programmes | 20 |
| Power Supply | DC 24 V |
| Product Dimensions (W x H x D) | 200 mm x 380 mm (580 mm fully extended) x 300 mm (7.87" x 14.96" [22.83"] x 11.81") |
| Weight | 3.6 kg |
User Manual
Dip Coater V2 user manualDip Coat High Quality Films
Precision Motor for Reproducibility
We have developed a motor with a high degree of accuracy and reproducibility for a smooth motion profile. You can be sure that each time you coat your sample, you will get the same results every time. The crash detection system can detect when the substrate or arm crashes into the base of the coater or a beaker. To reduce the chance of damaging your samples or equipment, the motor stops automatically.
Customizable Thickness and Gradient
Withdraw your substrate from the solution at varying rates as low as 0.05 mm/s up to 125 mm/s. Customize your films to fit your required coating thicknesses using one dip coating system. For high quality gradient films, the speed of withdrawal can be varied across the substrate length. Optimize your film characteristics and produce films suitable for a wide range of research applications.
Streamlined Coating Processes
The quick release clamp design lets you quickly load and unload samples onto the dip coater arm. Streamline your experimental process with a system that tackles workflow issues. integrated software makes it easy to set up and allows you to choose between manual or automatic operation. Save programs and routines to coat multiple substrates without reconfiguring the settings.
Dip Coater Gallery
Resources
Dip Coating: Practical Guide to Theory and Troubleshooting
Dip coating is low-cost to set up and maintain, and can produce films with extremely high uniformity and a roughness of nanometers. Within research and development, it has become an important coating method for the fabrication of thin films using a purpose-built dip coater.
