Guide: Viscoelastic Transfer of 2D Material Using PDMS

Viscoelastic transfer using polydimethylsiloxane (PDMS) stamps is one of the methods used for the deterministic placement of 2D materials and the fabrication of van der Waals heterostructures [1]. It relies on the viscoelasticity of PDMS, which behaves as an elastic solid on short time scales, but as a viscous fluid on long time scales. As a result, PDMS films demonstrate kinetically controlled adhesion: the faster an object is pulled off the surface of the film, the stronger adhesion force it will experience. Faster peel-off rates therefore can be used to deposit 2D material onto PDMS, and slower rates - to release it onto a target substrate.

PDMS-based transfer offers a fast and convenient way of depositing 2D materials onto virtually any substrate and, unlike other methods, does not require the use of wet chemistry. One significant limitation of this technique are polymer residues left on the surface of the material after the transfer. These residues are generally inert and optically clear, and their presence might be beneficial for the optical properties of 2D crystals, acting as an encapsulation layer that protects the material from the surrounding environment. They can, however, prevent efficient interaction between different layers, and van der Waals heterostructures fabricated using this method usually require additional processing steps, such as thermal annealing or AFM ironing [2] to improve the quality of the interlayer interface. This technique is therefore best suited for the fabrication of individual monolayers and their integration into existing structures, such as pre-pattern contacts, photonic and plasmonic structures.

Video Guide (Part 1) - Exfoliation and Flake Identification

Preparation of the PDMS stamp

PDMS is a commercially available rubber, commonly used as protective coating for solar cells and light-emitting diodes. In this guide, we will be using pre-packaged films available from Gel-Pak (product code PF-3-X4), but two-component elastomer kits (such as Sylgard 184 from Dow Corning) can also be used. For viscoelastic transfer, a thin PDMS film (<1mm) is deposited onto a rigid transparent substrate, such as microscope glass slide, which acts as a support for mechanical exfoliation and transfer.

Preparation of the PDMS stamp Step 1 - clean glass substrates
  1. Prior to deposition, glass slides need to be cleaned to remove any dust or organic residues that can interfere with stamp adhesion and lead to the formation of bubbles. Use nitrogen or a compressed air gun to blow dust off the glass substrates, then put them into UV Ozone Cleaner for 5 minutes. Alternatively, sonicate the substrates in a beaker of isopropyl alcohol (IPA) for 5 minutes, then blow dry with a nitrogen gun. If you don’t have access to an ozone cleaner or sonicator, cleaning the substrates with IPA wipes should give you sufficiently good results.
Preparation of the PDMS stamp Step 2 - cut PDMS film
  1. Cut PDMS film into 5-10 mm squares. The PDMS film from Gel-Pak comes sandwiched between two protective films and can be safely cut using normal scissors.
Preparation of the PDMS stamp Step 3 - separate the PDMS and cover sheet
  1. Separate the top two layers (PDMS and cover sheet) from the substrate using tweezers. Hold the PDMS by the corner of the stamp to minimise contamination.
Preparation of the PDMS stamp Step 4 - apply the film to the glass slide
  1. Carefully apply the film to the glass slide, avoiding the formation of bubbles. Then remove the protective cover sheet.
Preparation of the PDMS stamp Step 5 - avoid bubbles and other deformations
  1. If there are any wrinkles or bubbles formed, peel the film off and re-apply it to the substrate. Put one corner down first, then, slightly bending the rest of the stamp upwards, let it slowly roll onto the substrate.
2D materials

Perform your own viscoelastic transfer of 2D Material


Mechanical exfoliation is the method originally developed by Andre Geim and Konstantin Novoselov for the isolation of monolayer graphene in 2004 and has been successfully applied to other layered materials. Despite low yield and relatively small size of the single-layer flakes produced by this technique, it is still widely used in research due to its accessibility and excellent material quality of the produced samples. Single, and few-layer flakes are separated from bulk crystal and deposited onto a substrate using a piece of adhesive tape. We use high-quality tape (BT-150E-CM, Nitto) designed to minimise tape residues, but normal office tape, such as Magic Tape from Scotch, could also be used.

Exfoliation Step 1 - cut the tape into small pieces
  1. Cut the tape into small pieces: they should be slightly larger than the PDMS stamp. Leaving some additional space on one side will make them easier to handle.
Exfoliation Step 2 - place the bulk crystal onto the tape and cover it with another piece of tape, press down with tweezers
  1. Put the bulk crystal on one piece of tape and cover it with the second piece. Apply gentle pressure with flat-tipped tweezers to ensure good contact between the tape and the surface of the crystal.
Exfoliation Step 3 - peel the tape and place it again on the crystal at a clean piece of tape
  1. Peel the two pieces of tape apart, adjust their position slightly (so the bulk crystal overlaps with a clean piece of tape) and then bring them together again.
  2. Repeat the process, covering the surface of the tape with thin material. More peels will result in higher surface coverage and overall thinner flakes, but will cause the crystal to break into smaller parts, resulting in a smaller size of the monolayer flakes.
  3. Additional pieces of tape can be created by transferring some of the prepared material onto a fresh piece of tape.
Exfoliation Step 6 - remove the bulk crystal from the tape surface
  1. After covering a large portion of the tape surface, and if the bulk crystal is still structurally sound, it can be removed from the tape with tweezers. Alternatively, the piece of tape with bulk crystal can be stored and used later for another exfoliation.
Exfoliation Step 7 - place the prepared tape on the PDMS stamp
  1. Put one of the pieces of prepared tape on top of the PDMS stamp and apply gentle pressure with a cotton bud. The goal is to ensure good contact between the tape and PDMS, but applying too much pressure can lead to the formation of wrinkles and cracks in the material.
Exfoliation Step 8 - peel off the tape
  1. Peel the tape off. Depending on the strength of the adhesion of the stamp to the glass substrate, you might need to hold the stamp down at a corner with tweezers.
  2. The rate of the peel defines the amount of material transferred onto PDMS: a faster peel rate will result in more material being transferred, but might also increase the average thickness of the flakes.
  3. Repeat this process with other pieces of tape and PDMS stamps that you have prepared.
2D materials

Perform your own viscoelastic transfer of 2D Material

Flake search and thickness identification

Mechanical exfoliation produces flakes of various sizes and thicknesses; atomically thin flakes are a minority among much thicker crystals. These flakes need to be located and identified using a reflected-light microscope - a process commonly known as flake search. Mono, and few-layer flakes can be distinguished by their translucent appearance and low optical contrast. Their visibility will depend on the material, substrate it is deposited on, and the optical system used. Materials with higher absorption in visible range, such as transition metal dichalcogenides, will be more visible than materials with weaker absorption such as graphene or hexagonal boron nitride. Certain types of substrates, such as silicon wafers covered with a 90 nm or 290 nm thick silicon dioxide layer, can improve the flake visibility. Once a suspected monolayer flake is located, its thickness can be estimated using optical contrast measurements and confirmed using Raman or photoluminescence spectroscopy.

Flake search and thickness identification Step 1 - inspect the substrate
  1. Inspect the substrate using a reflected-light optical microscope to look for the most translucent flakes. Higher-magnification lenses with a shallow depth of field usually provide a better optical contrast for PDMS stamps.
Flake search and thickness identification Step 2 - locate a monolayer flake and take additional images
  1. Once a possible monolayer flake is located, save its digital image (making sure that is properly exposed). Take additional images at lower magnifications and note the approximate position of the flake on the PDMS stamp to help you find it later.
Flake search and thickness identification Step 3 - open the image using image software
  1. Open the acquired high-magnification image with software such as ImageJ or Fiji.
Flake search and thickness identification 4 - select the area using as selection tool
  1. Select an area of the suspected monolayer using one of the selection tool and measure the mean intensity of the reflected light by pressing M on the keyboard. The data will be displayed in the ‘Results’ window. The type of measurement displayed in the window can be changed by right-clicking on the column title and selecting ‘Set Measurements’.
  1. Move the selection region onto the substrate and repeat the measurement. Try to keep the distance between the measurement points as small as possible to avoid the influence of the non-uniform illumination.
  1. Calculate the optical contrast as:
    Optical contrast equation

    The optical contrast of layered 2D materials changes linearly with increasing number of layers. The value of the contrast can be positive or negative, depending on the type of the substrate used, and might also vary depending on the measurement conditions. However it should be close to the minimum difference between the adjacent thicknesses.

Flake search and thickness identification Step 7 - graph for intensity of monolayer, bilayer and trilayer of graphene and WSe2
  1. Monolayer thickness can be confirmed using optical spectroscopy. For graphene, the properties of the Raman 2D peak located at 2700 cm-1 are commonly used to identify single-layer flakes. It has a symmetric lorentzian shape and FWHM ∼ 25-30 cm-1 in monolayer, but broadens substantially in bilayer (FWHM ∼ 50 cm-1) and requires four lorentzians to accurately reproduce its shape [3].
Flake search and thickness identification Step 8 - WSe2 on PDMS
  1. Similarly, for hBN the frequency and intensity of the G peak at ~1360 cm-1 can be used [4], although a few-layer hBN will likely be completely invisible on PDMS stamps due to the low optical contrast.
Flake search and thickness identification 9 - using PL imaging or spectroscopy to identify TMD thickness

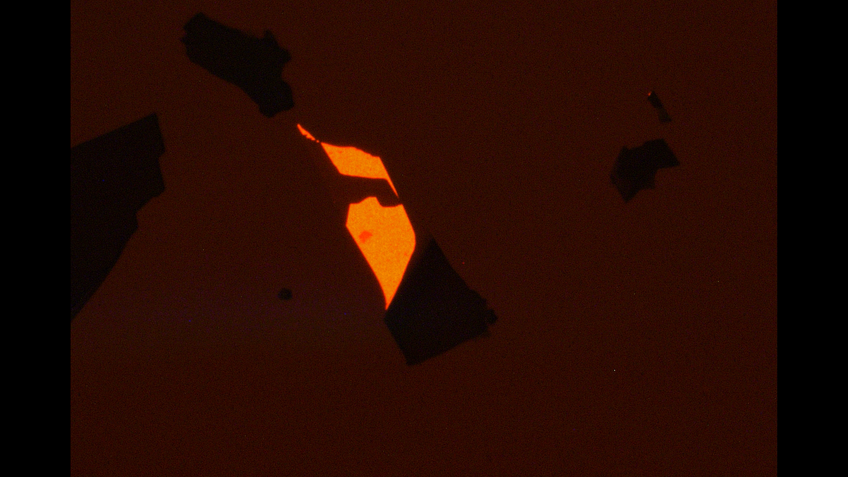

  1. The most convenient way to identify TMD thickness is using PL imaging or spectroscopy. Group-VI TMD have direct band gap only in their monolayer form, so the intensity and shape of the PL peak can be used for thickness identification [5]. Monolayer TMDs will show a bright and spectrally narrow emission peak. In contrast, photoluminescence signal in bilayers will be much weaker and have a significantly broader linewidth, showing emission originating from both momentum-direct and indirect transitions. Further increase in thickness will lead to almost complete loss of the PL signal.

Video Guide (Part 2) - Deterministic Transfer

Target substrate cleaning

The cleanliness of the target substrate plays a key role in the deterministic transfer process, affecting both the success of the transfer and the quality of the resulting sample. The cleaning method will depend on the type of substrate used – here we will discuss the cleaning of a silicon substrate coated with 300 nm thick thermally grown SiO2 layer, the type of substrate commonly used in 2D material research.

Substrate cleaning Step 1 - place substrates in a substrate rack and place in Hellmanex solution
  1. Place the substrates into a substrate rack.
  2. Put the rack into a Hellmanex solution.
Substrate cleaning Step 2 - place beaker into a sonicator
  1. Place the beaker into a sonicator for 5 minutes.
  2. Remove the beaker from the sonicator and take out the rack from the solution.
Substrate cleaning Step 5 - rinse the substrates in water and IPA
  1. Rinse the substrates in water then place the rack into IPA.
  2. Put the rack into the sonicator for an additional 5 mins
Substrate cleaning Step 7 - dry using a nitrogen gun
  1. Dry the substrates with a nitrogen gun.
Substrate cleaning Step 8 - clean substrates using a UV ozone cleaner
  1. Clean the substrates in a UV Ozone Cleaner for 5 minutes.

Initial alignment

Deterministic transfer of 2D materials requires a dedicated transfer setup, which comprises two key components: a set of micromanipulators for precise alignment of the polymer film with the transferred material and the target substrate, and a long working distance reflected light microscope equipped with a digital camera. Depending on the transfer method used, the setup might also include a heated holder for the target substrate. A bare minimum requirement for PDMS transfer is a 3-axis micromanipulator for the stamp alignment, and a digital camera with a zoom lens.

Initial alignment Step 1 - using a long working distance reflected light microscope with micromanipulators to ensure the glass slide is parallel to the PDMS stamp
  1. If your transfer system allows pitch and roll adjustments, use them to ensure that the glass slide with the PDMS stamp is parallel to the target substrate. A small degree of pitch misalignment might be beneficial for the transfer, as it will allow the stamp to come into contact with the substrate and detach from it in a more gradual way.
  2. Put the target substrate onto the substrate holder and fix it in place with double sided adhesive tape or vacuum. Using the X and Y translation stages, place the target area of the substrate in the centre of the field of view. A PDMS transfer will be easier to achieve if you choose a region at the edge of the substrate on the side closest to the stamp holder, as this will minimise the area of contact between the stamp and the substrate surface.
  3. Focus the microscope on the substrate and inspect it to make sure the chosen target region is free of contamination. Having a feature on the substrate, such as a scratch mark or a small dust particle in the vicinity of the target region will make it easier to identify the optimal focus point (especially if you are transferring a 2D flake onto a bare substrate). If you are struggling to find the optimal focus, close the field diaphragm of the microscope until its leaves are visible and adjust the focus again – the leaves should come into sharp focus at the same time as the substrate surface.
  4. Attach the glass slide (PDMS stamp facing down) to the 3-axis micromanipulator. Close the aperture diaphragm of the microscope all the way to improve the contrast of the image. Then focus the microscope on the stamp surface and locate the transferred flake, placing it roughly in the centre of the field of view.
Initial alignment Step 5 - Draw the outline of the flake in the microscope software

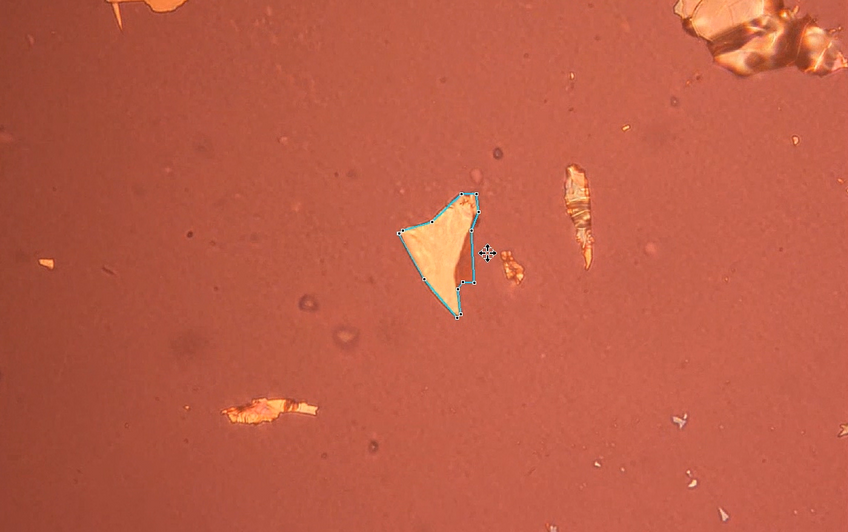

  1. Draw the outline of the flake in the microscope software. If necessary, mark any flakes in its vicinity that might interfere with the transfer. If the software that you use does not support marking, you can use software such as Peek Through to overlay a semi-transparent image of the flake outline on top of the microscope software window.
  2. Bring the focus down until the substrate looks sharp. Using the outline of the flake that you drew, adjust the position of the substrate to align the flake to the target area. Make sure that other flakes surrounding it do not overlap with important features on the substrate (e.g. bridge a contact pair).

Deterministic Transfer

Once the initial alignment is complete, you can proceed to the final step of the transfer process which consists of bringing the stamp in contact with the substrate while maintaining the required alignment. Then slowly separate the two, leaving the 2D crystal on the target substrate. The peel off rate plays a crucial role in the success of the transfer – using a manual differential micrometer screw or a motorised actuator for Z axis will give you much finer control.

Deterministic transfer Step 1 - Bring the stamp closer to the substrate surface
  1. Bring the stamp closer to the substrate surface while maintaining sufficient vertical separation. The best way to do this is to focus on the substrate surface, then bring the focus up by ~100 μm and lower the glass slide until the surface of the stamp comes into sharp focus. Use the markings on the fine focus knob to identify the required number of rotations – for modern Nikon microscopes, 100 μm usually corresponds to one full rotation.
  2. Check the alignment of the transferred flake. If the PDMS stamp has shifted, adjust its position until the flake is aligned with the outline that you drew.
  3. Continue to lower the stamp while observing the flake alignment, until you get close to the substrate surface.
Deterministic transfer Step 4 - Focus on the substrate and keep lowering the glass slide
  1. Focus on the substrate and keep lowering the glass slide until a part of the stamp comes in contact with the substrate. The point of contact can be identified by a change of colour and contrast.
  2. Continue to bring the stamp down until the area of the stamp (~100 μm radius around the flake) is in contact with the substrate. Increasing the area of contact further will result in more pressure being applied to the flake. This can ensure better contact with the substrate but may also lead to formation of cracks and wrinkles.
Deterministic transfer Step 6 - Start to slowly lift the stamp up
  1. Start to slowly lift the stamp up. As the adhesion of the PDMS stamp is kinetically controlled, the slower you separate the stamp from the substrate, the more likely the flake will be transferred. Peel off rate can be kept reasonably high at a large distance (>50 μm) from the flake, but should be as slow as possible in its close vicinity.
Deterministic transfer Step 7 - switch to a higher-magnification lens and look for a subtle change in colour
  1. When the contact line approaches the flake, switch to a higher-magnification lens and look for a subtle change in colour in the thin regions. This indicates that it is being successfully transferred.
Deterministic transfer Step 8 - A lack of contrast variation and movement of the flake
  1. A lack of contrast variation and movement of the flake shows that it is being lifted with the stamp – you can try to lower the stamp and make another transfer attempt.
  2. Once the contact line is at a sufficient distance from the flake (>100 μm), you can increase the rate of peel off. However, trying to lift the stamp too quickly might make the adhesion too strong, resulting in the whole substrate being lifted by the stamp.
Deterministic transfer Step 10 - Lift the stamp up until it is fully separated from the substrate
  1. Lift the stamp up until it is fully separated from the substrate, then remove the glass slide and inspect the transferred flake. Don’t forget to open the aperture diaphragm of the microscope.
